    • PPLN Chip Plus

      With its technology core in nonlinear grating fabrication (i.e. PPLN Chips) for nonlinear frequency mixing, HC Photonics extends its core to linear grating fabrication (i.e. VPH/FBG) for linear wavelength management. Those linear grating components could provide complementary functions (such as selected wavelength reflection, locking, filtering, coupling, pulse stretch, pulse compression, sensing, etc.) to PPLN nonlinear grating components, thus we also categorize them as PPLN Chips Plus in our product family.

    • Volume Phase Holographic (VPH) Gratings

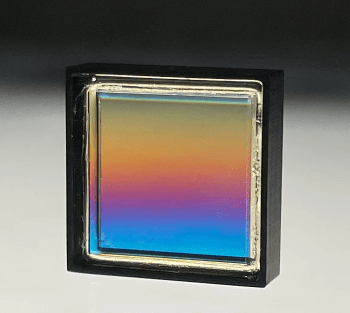

      Volume Phase Holographic Gratings diffract light through the refractive index modulations within a thin layer of material. They are designed to work at different wavelengths by adjusting the thickness and the index modulation of the medium and are commonly used as transmission gratings. The high peak diffraction efficiencies, approaching 100%, are possible.

      Key Features

      • Customized AR coating to increase diffraction efficiencies and reduce surfaces reflections.
      • Encapsulated grating, very robust, can be cleaned like other glass optical component.

      Pulse stretcher

      Pulse compressor

      Wavelength separator

      VPH Manufacturing Process

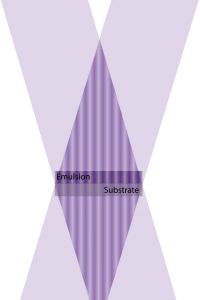

      VPHs are recorded by means of two beams interference. It creates a fringe pattern (ultraviolet light) to which the emulsion layer is exposed. VPHs are then formed by the development of emulsions.

      Robust and Easy to Clean

      VPHs are properly sealed and protected by glass plates. Therefore, our VPHs can be handled and cleaned like any other glass optical components. This is very different from ruled gratings which can be easily damaged by moisture, fingerprints, aerosols, or the slightest contact with any abrasive material.

      Reference specs



      1. VPH-600-520-100 (center wavelength at 520 nm)

      2. VPH-600-635-100 (center wavelength at 635 nm)

      Back to top
    • Fiber Bragg Grating

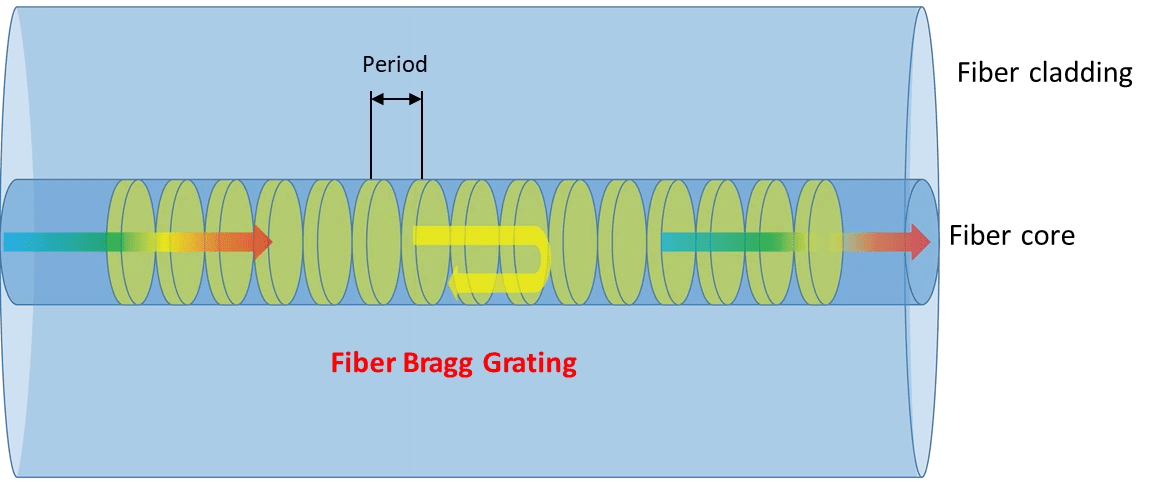

      A Fiber Bragg Grating (FBG) is a periodic refractive index variation of the fiber core along the fiber length, which is formed by exposure of the core to an intense optical interference pattern. This refractive index variation makes a FBG act like a dielectric mirror that reflects certain wavelengths and transmits others.

      Key features

      • Standard off-the-shelf items for your “quick plug-in” applications
      • PMF (Polarization Maintain Fiber) FBG
      • Uniform/Chirped FBG available
      • Custom spec available

      FBG Writing Process

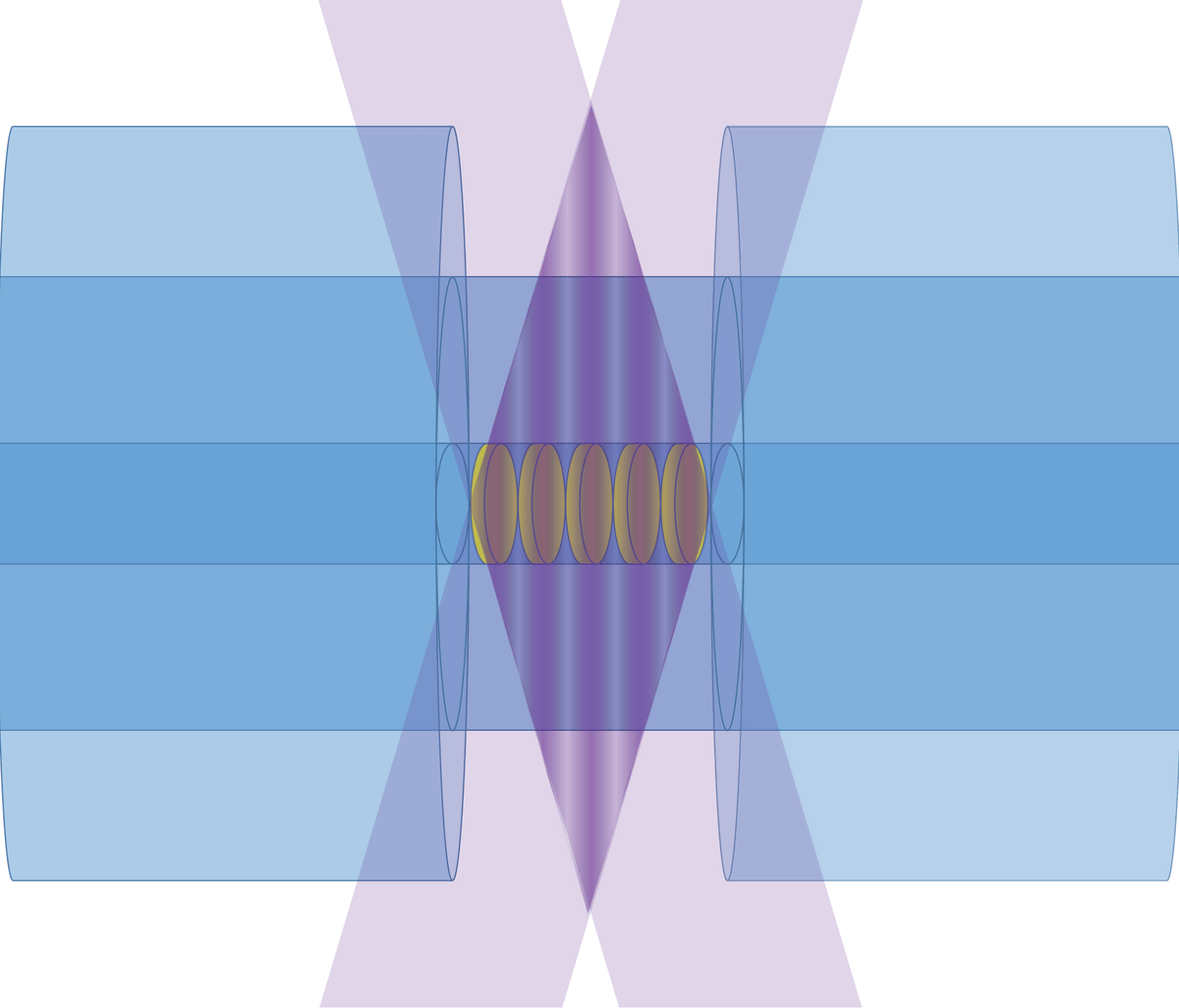

      FBGs are inscribed by exposing the core of a specially prepared optical fiber to a fringe pattern of ultraviolet light, generated by two beams interference.
      Our grating writing technology utilizes a phase mask to generate two‐beam interference to create the fringe pattern. Various phase masks and aperture plates are available for FBG customization.


      Two common types of FBG are uniform and chirped, as classified by variation of the refractive index change along the fiber axis.

      FBG Customization

      By actively controlling the period of the fringe pattern, fundamental grating characteristics such as

      • Center wavelength
      • Bandwidth

      • Wavelength range
      • Reflectivity

      can be tuned to fit specific applications need

      Matched Fiber Bragg Grating pair (Fiber Bragg Grating mirrors)
      Two separate FBGs can be made center wavelength matched as needed for some applications (ex. fiber laser).

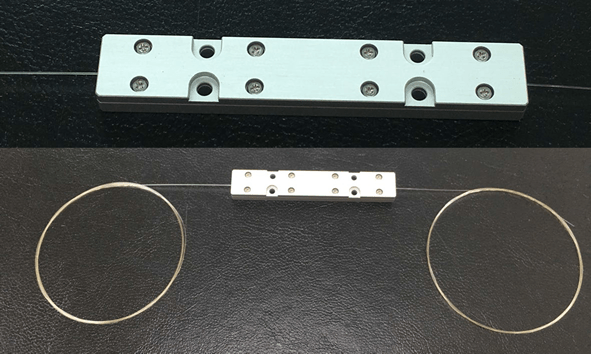

      FBG Recoating and Packaging​

      Various types of FBG packaging and recoating are available i.e.

      Standard package size and mini-packaging size

      Customization is welcome upon request


      Recoating: Low index polymer

      Packaging: Standard steel or aluminum package (mechanical shock protection)

      Reference specifications (examples)

      1. FBG Spec sheet 1064/1122 V1.3

      2. FBG Spec sheet 1070 high power V1.3

      3. FBG Spec sheet_1550,1560 V1.3

      Back to top
